| Ask Lasest Price | |
| Price : | Contact us |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100 sets per Month |
| Delivery Time : | 2 weeks |
| Brand Name : | EPiC LiDAR |
| Model Number : | EasyScan X10 / X10+ |
| Certification : | CE, FCC |

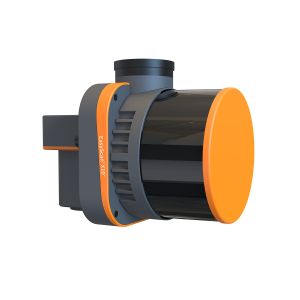

Versatile 3D laser Scanner Handheld SLAM and Airborne Drone LiDAR
Products Specification
| Model | XI0 | XI0+ | |
System Parameter | Weight | 280g | |
| Dimension | L159*W118*H127(mm) | ||
| Average Power Consumption | 25W | 26W | |
| Power Supply | 10~30V DC | ||
| Device Interface | DJI skyport/other interface available upon request | ||
| Data Storage | USB-disk 256GB | ||
| Operating Temperature | -10℃~50℃ | ||
| Storage Temperature | -30℃~60℃ | ||
| Syctem Accuracy | 5cm | ||
| Compatible Platform | DJI M300 RTK/Other UAV models | ||
Laser Unit | Scanning Principle | Mechanic Rotation Mirror | |
| Laser Class | ClassⅠ | ||
| Wavelength | 905nm | ||
| Measurement Range | 0.05m~120m@10%Reflectivity | ||
| Range Accuracy | ± 1cn | ||
| Horizontal FoV | 360° | ||
| Vertical FoV | 30°(-15~+15°) | 31°(-16~+15°) | |
| Scanning Point Frequency | Single Return:320,000pts/s Dual Return:640,000pts/s | Single Return:640,000pts/s Dual Return:1,280,000pts/s | |
| Return Mode | Single Return/Dual Return | ||
GNSS&IMI | GNSS Signal Tracking | BDS,GPS,GLONASS,GALILEO | |
| Positioning Accuracy(post-processing) | Plane:1cm/Elevation:2cm | ||
| Position Data Rate | ≥5HZ | ||
| Attitude Accuracy(post-processing) | Heading:0.05°/pitch/roll:0.01° | ||
| Attitude Data Rate | ≥200HZ | ||
Aerial Camera (External) | Effective Pixels | 26MP | |
| Sensor Dimension | 23.5×15.7mm | ||
| Image Resolution | 6252×4168 | ||
| Image Width FoV | 73° | ||
| GSD | 2.3cm@100m Flight Height | ||
Slam Unit (Optional) | Weigh | 1051g(Battery not Included) | |
| Dimension | L136W149 H108(mm) | ||
| Scanning Mode | Fix Installed | ||
| Battery Duration | 4h for Single Battery | ||
| Accuracy | Relative Accuracy 2cm/Absolute Accuracy 5cm | ||
High efficiency
Ultra light aerial survey module,image acquisition not limited by LiDAR measurement range, filght height can be appropriately increased to improve the operation efficiency.
Not affected by light
LiDAR is not affected by environment,less side overlap,wider coverage of single flight,data can be easily collected even in the night.
No signal limitation
Switch to SLAM mobile scanning mode, no limitation of GNSS signal, indoor and outdoor dataintegrated, collection makes the 3D data more complete
Real-time monitoring
Stimultaneous acquisition of point cloud and orthophoto to achieve the real-tim monitoring of flight trajectory, 3D point cloud and images during the whole flight of the system.
Smart Topographic Emergency Smart Civil Defense Pipeline
Grid Mapping Rescue Mining Engineering Inspection
EasyScan X10+ Applied on DJI M300 to measure ancient buildings in China
|
|
